| Nominal impedance [ohm] |
4 |
|
|
| Voice coil resistance [ohm] |
3.0 |
|
|
| Nominal power [W] |
140 |
|
|
| Short term max power [W] |
950 |
|
|
| Long term max power [W] |
400 |
|
|
| Operating power [W] |
5.3 |
|
|
| Sensitivity [dB] |
91.5 |
|
|
| Frequency range [kHz] |
1.5-40 |
|
|
| Free air resonance [Hz] |
500 |
|
|
| Voice coil diameter [mm] |
25 |
|
|
| Voice coil height [mm] |
2.2 |
|
|
| Air gap height [mm] |
3.2 |
|
|
| Voice coil inductance [mH] |
- |
|
|
| Eff. diaphragm Area [cm²] |
5.4 |
|
|
| Moving mass [g] |
0.30 |
|
|
| Magnet weight [g]/[oz] |
240/8.5 |
|
|
| Force factor [Bl] |
2.5 |
|
|
| VAS [l] |
0.017 |
|
|
| Qms |
2.50 |
|
|
| Qes |
0.71 |
|
|
| Qts |
0.55 |
|
|
|

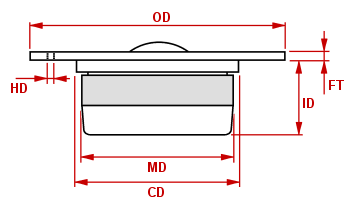

| OD: |
104 mm |
|
CD: |
- |
| FT: |
5 mm |
|
ID: |
41 mm |
| MD: |
73.5 mm |
|
HD: |
- | |
