| Nominal impedance [ohm] |
8 |
|
|
| Voice coil resistance [ohm] |
5.7 |
|
|
| Nominal power [W] |
- |
|
|
| Short term max power [W] |
- |
|
|
| Long term max power [W] |
- |
|
|
| Operating power [W] |
- |
|
|
| Sensitivity [dB] |
86 |
|
|
| Frequency range [Hz] |
- |
|
|
| Free air resonance [Hz] |
34 |
|
|
| Voice coil diameter [mm] |
25 |
|
|
| Voice coil height [mm] |
14 |
|
|
| Air gap height [mm] |
4 |
|
|
| Voice coil inductance [mH] |
0.53 |
|
|
| Eff. diaphragm Area [cm²] |
129 |
|
|
| Moving mass [g] |
11.8 |
|
|
| Magnet weight [g]/[oz] |
- |
|
|
| Force factor [Bl] |
5.6 |
|
|
| VAS [l] |
45 |
|
|
| Qms |
1.77 |
|
|
| Qes |
0.46 |
|
|
| Qts |
0.36 |
|
|
|

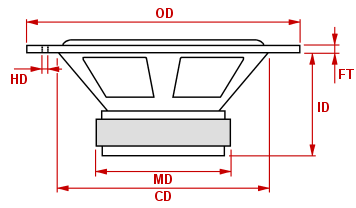

| OD: |
180 mm |
|
CD: |
147 mm |
| FT: |
1.7 mm |
|
ID: |
76 mm |
| MD: |
91.8 mm |
|
HD: |
6x?.2@?63 | |
