| Nominal impedance [ohm] |
8 |
|
|
| Voice coil resistance [ohm] |
5.9 |
|
|
| Nominal power [W] |
125 |
|
|
| Short term max power [W] |
600 |
|
|
| Long term max power [W] |
350 |
|
|
| Operating power [W] |
8 |
|
|
| Sensitivity [dB] |
87 |
|
|
| Frequency range [Hz] |
25-500 |
|
|
| Free air resonance [Hz] |
27 |
|
|
| Voice coil diameter [mm] |
50 |
|
|
| Voice coil height [mm] |
16 |
|
|
| Air gap height [mm] |
8 |
|
|
| Voice coil inductance [mH] |
2.70 |
|
|
| Eff. diaphragm Area [cm²] |
337 |
|
|
| Moving mass [g] |
51 |
|
|
| Magnet weight [g]/[oz] |
1050/37 |
|
|
| Force factor [Bl] |
10.9 |
|
|
| VAS [l] |
110 |
|
|
| Qms |
4.33 |
|
|
| Qes |
0.43 |
|
|
| Qts |
0.39 |
|
|
|

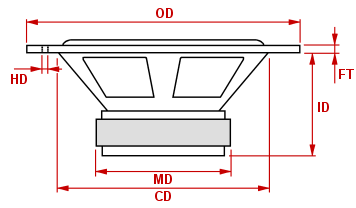

| OD: |
- |
|
CD: |
- |
| FT: |
- |
|
ID: |
- |
| MD: |
- |
|
HD: |
- | |
