P13WH-00-08

点击:从这里进入主页 更多资料进入 音箱制作资料进入







Nominal impedance [ohm]
8
Voice coil resistance [ohm]
5.7
Nominal power [W]
40
Short term max power [W]
-

Long term max power [W]
-

Operating power [W]
6.3
Sensitivity [dB]
88
Frequency range [Hz]
60-5000
Free air resonance [Hz]
60

Voice coil diameter [mm]
25
Voice coil height [mm]
14

Air gap height [mm]
6

Voice coil inductance [mH]
0.7
Eff. diaphragm Area [cm²]
86

Moving mass [g]
7.5

Magnet weight [g]/[oz]
415/14.6

Force factor [Bl]
6.0

VAS [l]
10

Qms
1.38

Qes
0.43

Qts
0.33

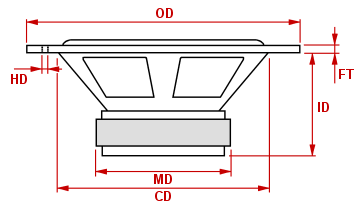

OD: 140 mm   CD: 115 mm
FT: 4 mm   ID: 60.5 mm
MD: 91.8 mm   HD: 4x?.1@?32

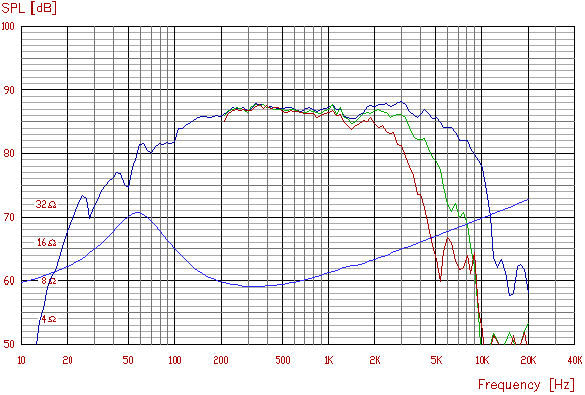

      Frequency response: 2.83V / 1m
