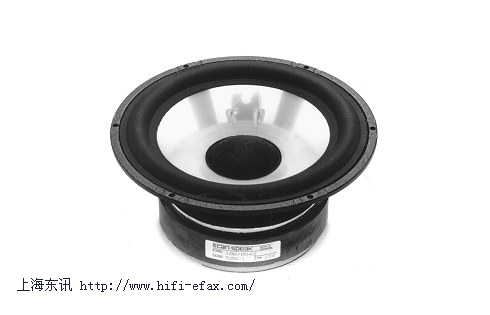

18W/8543-00 |
| Characteristic sensitivity (2.83V / 1m) |
: |
88.5 dB | |
| Recommended frequency range |
: |
30 - 4000 Hz | |
| Free air resonance frequency, fs |
: |
30 Hz | |
| DC resistance, Re |
: |
5.5 ohm | |
| Voice coil inductance, Le |
: |
0.2 mH | |
| Effective piston area, Sd |
: |
135 cm² | |
| Moving mass incl. air, md |
: |
15 g | |
| Mechanical loss, Rm |
: |
2.0 Ns/m | |
| Force factor, BL |
: |
7.8 Tm | |
| Equivalent volume, Vas |
: |
49 ltr. | |
| Mechanical Q-factor, Qms |
: |
1.4 | |
| Electrical Q-factor, Qes |
: |
0.26 | |
| Total Q-factor, Qts |
: |
0.22 | |
| Excursion, lin./max. |
: |
¡À6.5 / ¡À10 mm | |
| Voice coil diameter |
: |
42 mm | |
| Rated power handling |
: |
80 W | |
| Net weight |
: |
2.4 kg |
