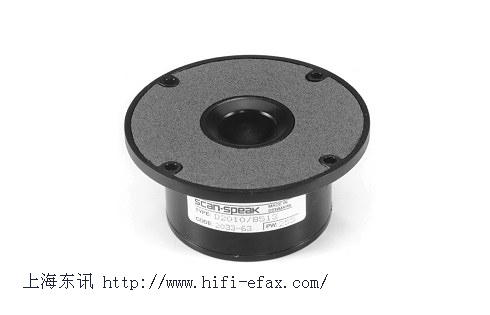

D2010/851300


Characteristic sensitivity (2.83V / 1m)
:
90 dB
Recommended frequency range
:
4 - 20 kHz
Free air resonance frequency, fs
:
800 Hz
DC resistance, Re
:
5.7 ohm
Voice coil inductance, Le
:
0.07 mH
Effective piston area, Sd
:
3.8 cm²
Moving mass incl. air, md
:
0.25 g
Force factor, BL
:
2.4 Tm
Excursion, lin./max.
:
0.7 / 1.2 mm
Voice coil diameter
:
19 mm
Rated power handling
:
150 W (12 dB/oct.
cross-over at 4 kHz)
Net weight
:
0.4 kg

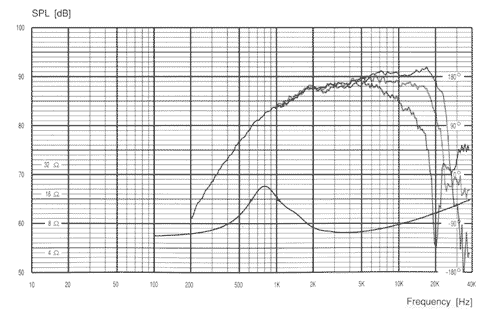

      Frequency response: 2.83V / 1m
