R2904/700000


Characteristic sensitivity (2.83V / 1m)
:
94.5 dB
Recommended frequency range
:
2 - 40 kHz
Free air resonance frequency, fs
:
520 Hz
DC resistance, Re
:
3.0 ohm
Voice coil inductance, Le
:
0.01 mH
Effective piston area, Sd
:
5.6 cm2
Moving mass incl. air, md
:
0.30 g
Force factor, BL
:
2.8 Tm
Excursion, lin./max.
:
¡À0.20 / ¡À1.6 mm
Voice coil diameter
:
25 mm
Rated power handling
:
160 W (12 dB/oct.
cross-over at 2.5 kHz)
Net weight
:
0.42 kg

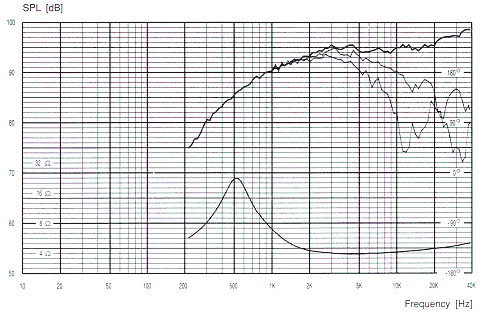

      Frequency response: 2.83V / 1m
