Morel product information
        MDT29



厚謹 爆瀝

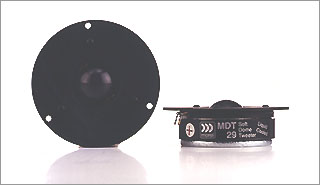

MDT 29

Soft Dome Tweeter
Solin Range


FEATURES
  • Large diameter voice coil
  • Ferrofluid cooled
  • High power handling
  • Replaceable dome/coil assembly
  • Sturdy gold-plated input tags
  • Aluminium face-plate




SPECIFICATIONS

Overall Dimensions



0D 94mm (3.7") x 27mm (1.06")

Nominal Power Handling (DIN)

P

80 W

Transient Power 10ms



1000 W

Nominal Impedance

Z

8 Ohms

Sensitivity 1W/1M



89 dB

Frequency Response



1800 - 20000 Hz

Resonant Frequency

FS

900 Hz

VOICE COIL

Voice Coil Diameter

0

OD 28mm (1.125")

Voice Coil Height



2.5mm (0.098")

Voice Coil Former



Aluminium

Voice Coil Wire



Copper

Number of Layers



2

DC Resistance

RE

5.2 Ohms

Voice Coil Inductance @ 1KHz

LBM

0.05 mH

MAGNET SYSTEM

Magnet System Type



Ferrite

HE - Magnetic Gap Height

HE

2.5mm (0.098 ")

B Flux density

B

1.45T

BL Product

BXL

3.3 N.A

Max. Linear Excursion

X



OPERATIONAL PARAMETERS

Suspension compliance

CMS



Mechanical Q Factor

QMS



Electrical Q Factor

QES



Total Q Factor

Q/T



Mechanical Resistance

RMS



Moving Mass

MMS

0.5gm.

Equivalent Cas Air Load

VAS



Cone / Dome Material



Hand Treated Fabric

Effective Piston Area

S

6.0 cm?

Net Weight

Kg.

0.536 Kg.



A more cost-effective high quality tweeter. Hand treated soft dome, copper voice coil with self-terminating leads, liquid cooled and self-centering replace able diaphragm assembly.

This tweeter exhibits a very smooth frequncy response, both on and off axis with good power handling and low distortion.

The soft dome and voice coil's mass are critically matched, resulting in a low resonance point of 900 Hz, and very smooth roll off from 1800 Hz, making this tweeter ideal for any two-way or three-way system.
